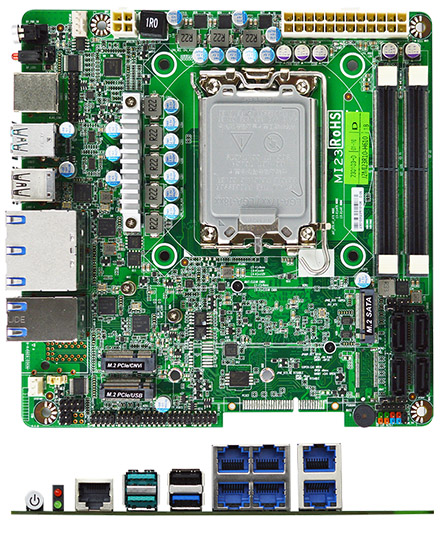

Jetway MI23-H610 Mini-ITX (Intel 12./13th Gen. LGA1700, 4x SATAIII, 6x 2.5GbE LAN)

Jetway MI23-H610 Mini-ITX (Intel 12./13th Gen. LGA1700, 4x SATAIII, 6x 2.5GbE LAN)
  • H610 Chipset !
  • 6x LAN !
  • DDR5 !
  • MiniITX !

The JETWAY MI23-H610X Series adopt the Intel®LGA1700 socket processor and are equipped with two DDR5 SO-DIMM slot up to 64GB. Featuring the integrated Intel® 2.5 Gigabit Ethernet controller for six 10/100/1000/2500 Base-TX Ethernet devices for network transmission. one M.2 (M-key 2280, PCIe Gen.4×4 w/SATA interface) support NVMe and four SATAIII for multiple storage choices. One M.2 (E-key 2230, USB2.0/PCIex1 interface) support CNVi and one M.2 (B-key 3042, USB3.2 Gen.1/USB2.0/PCIex1) support 4G module. There are two USB3.2 Gen.2 ports, one USB3.2 Gen.1 port, five USB2.0 ports, and three RS232 for versatile expansions. MI23-H610X Series are suitable for IoT, High Performance Networking Ap [more]

Share

359.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

The JETWAY MI23-H610X Series adopt the Intel®LGA1700 socket processor and are equipped with two DDR5 SO-DIMM slot up to 64GB. Featuring the integrated Intel® 2.5 Gigabit Ethernet controller for six 10/100/1000/2500 Base-TX Ethernet devices for network transmission. one M.2 (M-key 2280, PCIe Gen.4×4 w/SATA interface) support NVMe and four SATAIII for multiple storage choices. One M.2 (E-key 2230, USB2.0/PCIex1 interface) support CNVi and one M.2 (B-key 3042, USB3.2 Gen.1/USB2.0/PCIex1) support 4G module. There are two USB3.2 Gen.2 ports, one USB3.2 Gen.1 port, five USB2.0 ports, and three RS232 for versatile expansions. MI23-H610X Series are suitable for IoT, High Performance Networking Application, and Firewall solution.

  • Intel® LGA1700 Socket supports 12th/13th Gen. Core Processor (Max. 65W TDPs under 180A)
  • Intel® H610E Chipset
  • 2* DDR5 4800MHz SO-DIMM up to 64GB
  • 4* SATAIII (6Gb/s)
  • 1* M.2 (M-key), 1* M.2 (E-key), 1* M.2 (B-key)
  • 6* 2.5GbE, 3* RS232
  • 2* USB3.2 (Gen.2), 1* USB3.2 (Gen.1), 5* USB2.0
  • 24pin ATX + 4pin 12V
  • ATX Power Input
  • Support JetBIOS SW back up tool for BIOS recovering


Model – MI23-H6100 (H610E)
– MI23-H6102 (H610E, onboard TPM2.0)
Form Factor – Mini-ITX (170 * 170mm)
Processor System – Intel® 12/13th LGA1700 Socket Core i7/i5/i3/Pentium/Celeron Processor (Max. 65W TDPs under 180A)
– Intel® H610E Chipset
– AMI Flash ROM BIOS
*Support recover crashed BIOS data tool by a USB flash pen driver: Using JetBIOS SW back up tool with any external USB ports
Memory – 2* DDR5 4800MHz SO-DIMM up to 64GB
Storage – 4* SATAIII (6 Gb/s) (SATA4 share with M.2 M-key 2280)
– 1* M.2 M-key (2280, PCIe Gen.4×4 w/SATA interface) support NVMe
Expansion – 1* M.2 E-key (2230, USB2.0/PCIe x1) support CNVi
– 1* M.2 B-key (3042, USB3.2 Gen.1/USB2.0/PCIe x1) support 4G Module
Ethernet – 1* Intel® i225-LM 2.5GbE
– 5* Intel® i225-V 2.5GbE
Graphics – Intel® UHD Graphics, shared memory
– 1* HDMI (Max Resolution: 1920×1080@60Hz)
Audio – NA
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 4* USB2.0
– 4* SATAIII
– 2* RS232
– 1* Chassis intrusion
– 1* HDMI
– 1* PS/2
– 1* SIM card slot
– 1* GPIO
– 1* SMBUS
– 1* AT mode
External I/O – 2* USB3.2 (Gen.2)
– 1* USB3.2 (Gen.1)
– 1* USB2.0
– 6* RJ45 2.5GbE
– 1* RS232
– Power Button
– Power LED
Power ATX PWR (4 + 24 pin)
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating Temperature: 0 ~ 60° C (with 0.7m/s air flow)
– Storage Temperature: -20 ~ 85° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Windows 11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
