Fully working, recertified mainboard.
1 year warranty
- for Pentium-M and Celeron-M CPUs, 533/400FSB up to 2.26 GHz
- 1x 184-pin DIMM socket (DDR 200/266/333, up to 1GB)
- 1x 44-pin Standard-IDE Port
- 1x 40-pin Slim-IDE Port (for 2.5" HDD)
- 1x PCI
- 2x Mini-PCI
- 1x Gigabit LAN
- Graphics adapter onboard (Intel Extreme Technology)
- Sound onboard (Realtek ALC655 5.1 AC97)
- Standard ATX power connector
- TV-Out
Scope of supply :

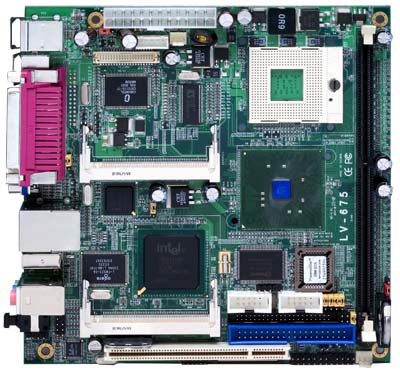

- LV675 mainboard
- Slim CPU Alu cooler
CPU | Intel Pentium-M/Celeron-M @ 400/533 FSB |
Graphics | Intel Extreme Graphics |
Formfactor | ITX (17x17cm) |
RAM | 1x DDR 266/333 |
Audio | Realtek ALC655 5.1 AC97 |
Base | Intel ITX |
USB | 4x USB 2.0 |
Firewire | -- |
IDE/SATA | 2x IDE |
LAN | 1x 10/100 |
Parallel | 1x |
Serial | 2x |
yes | TV-Out |
yes | PCI |
yes | Mini-PCI |
yes | IDE |
yes | DVI |
yes | 800x480 Resolution |
no | Passive-Cooling |
no | PCI-Express |
no | PCMCIA |
no | SATA |
yes | CPU changeable |
no | Compact Flash |
Bonne carte mère, mon seul regret est que le réseau soit limité au 10Mbt. A remarquer que le port pci ex reconnait très bien les cartes graphiques récentes, mais dans ce cas choisissez un modèle avec alimentation indépendante, la carte mère doit un peut souffrir de l'ajout de demande de courant électrique...
