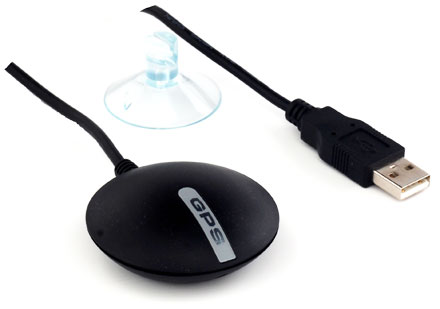

Globalsat BU-353N5 USB GPS Receiver (Galileo, QZSS, SBAS)

Globalsat BU-353N5 USB GPS Receiver (Galileo, QZSS, SBAS)
  • MediaTek Chip !
  • LED indicator for GPS fix !

  • High sensitivity MediaTek chipset (Tracking sensitivity: -165 dBm)
  • Extremely fast TTFF (Time To First Fix) at low signal levels
  • Supports NMEA 0183 data protocol
  • Built-in backup power to reserve system data for fast satellite acquisition
  • Built-in patch antenna
  • Super-strong magnet for attaching to the car
  • Water-repellent and non-slip on the bottom
  • USB interface connector
  • LED indicator for GPS fix or not fix

    • ->LED OFF: Receiver switched off
    ->LED ON: No fixed network, signal search
    ->LED flashes: Position fixed


Share

49.95 EUR
incl. 19% VAT, plus shipping
In Stock (357 pcs)
Add to cart
General
Chipset MediaTek AG3335MN
Frequency GPS, Galileo, QZSS, SBAS : L1, 1575.42 MHz C/A code
GLONASS : L1, 1602 MHz
BeiDou : B1, 1561.098 MHz
C/A code 1.023 MHz chip rate
Channels 75 track verification channels
Sensitivity Tracking: -165 dBm

Accuracy
Accuracy 3 meters, 2D RMS
2.5 meters, 2D RMS, SBAS enabled
Velocity 3 meters, 2D RMS 2.5 meters, 2D RMS, SBAS enabled
Time 1us synchronized to GPS time

Datum
Default WGS-84

Acquisition Time
Reacquisition 0.1 sec., average
Hot start < 1 sec., average
Cold start < 33 sec
< 15 sec with AGPS

Dynamic Conditions
Altitude 18,000 meters (60,000 feet) max
Velocity 515 meters /second (1000 knots) max
Acceleration Less than 4g
Jerk 20m/sec

Power
Main power input 4.5V ~ 6.5V DC input
Power consumption 42mA @5V

Protocol
Electrical level Output voltage level: 0V ~ 2.85V
Baud rate 4800 bps, 8 data bits, no parity, 1 stop bit
Output message NMEA 0183 GGA, GSA, GSV, RMC
GLL, VTG, ZDA, GRS, GST

Physical Characteristics
Dimension 53mm diameter, 19.2mm height
Cable Length 1.5M
Operating temperature -40℃ to +85℃
Data sheet Download (PDF)
Data sheet Print view
