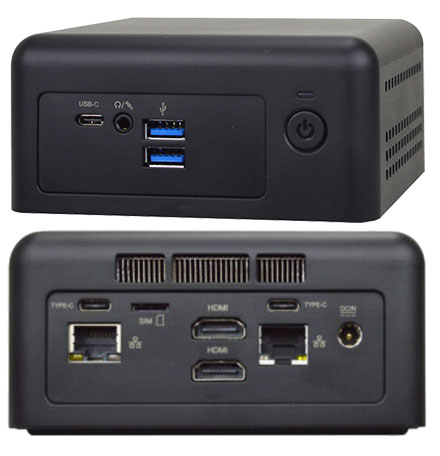

Jetway N11-1115 (Intel i3-1115G4 Tiger Lake-UP3, 5x USB 3.2, 2x LAN)

Jetway N11-1115 (Intel i3-1115G4 Tiger Lake-UP3, 5x USB 3.2, 2x LAN)
  • Intel Tiger Lake-UP3 !
  • 3x USB-C !
  • 2x LAN !
  • NUC Fromat !

  • Intel® 11th Gen. Tiger Lake-UP3 SoC Processor
  • 2* DDR4 3200MHz SO-DIMM up to 64GB
  • Rich and complete connection interface
  • supports 4 sets of 4K HDR output
  • 3* internal M.2 expansion slots for various applications


Share

569.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
 Model – N11-1115 (CPU : 1115G4)
– N11-1135 (CPU : 1135G7)
 CPU/Chipset – Intel® Tiger Lake-UP3 Processor
 BIOS – AMI Flash ROM
 Memory – 2* DDR4 3200MHz up to 64GB
 Network – 1* Intel i219-LM GbE
– 1* Intel i225-V 2.5GbE
 Graphics – Intel® UHD / Iris Xe Graphics, shared memory
– 2* HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
– 2* DP1.4 (Max Resolution: 4096×2304@60Hz) from Type-C
– Support Four independent 4K HDR Displays
 Storage – 1* M.2 M-key 2242/2280 (PCIe4.0 x4/SATAIII interface) support NVMe
– 1* 2.5” SATA Device (support 2.5” HDD with a height ≤ 10mm)
 Expansion slot – 1* M.2 E Key 2230 for WiFi module
– 1* M.2 B Key 3042/3052 for 4G/5G module
 Rear Panel I/O – 2* USB3.2 (Gen.2) Type-C support DP1.4 display output
– 1* SIM Card slot
– 2* HDMI 2.0
– 2* RJ45
– 1* DC Jack
 Front Panel I/O – 1* Audio (Line out +MIC combo)
– 2* USB3.2 / A type (Gen.2)
– 1* USB3.2 / C type (Gen.2)
– 1* Power Button
– 1* Power LED
 Internal Connector – 1* SATAIII
– 1* AT/ATX mode jumper
– Onboard TPM2.0 (option)
 Compliance – CE, FCC, RoHS, ErP Ready
 Power Source – MB : DC12~24V input
– Adapter : DC12V_90W
 Compliance – CE, FCC, LVD, RoHS
 Temperature – Operating Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 60° C
 Dimensions – System: 121 (W) x 113.4 (D) x 59 (H) mm
– Box: 244 (W) x 183 (D) x 118 (H) mm
 OS Support – Windows 11, Linux

Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
