DFI EC800-CD2041 Mini-PC (Intel D2550 2x1.86Ghz, 2GB RAM, 16GB SSD, 2x LAN, 2x COM, 2x MiniPCIe) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
DFI EC800-CD2041 Mini-PC (Intel D2550 2x1.86Ghz, 2GB RAM, 16GB SSD, 2x LAN, 2x COM, 2x MiniPCIe) [<b>FANLESS</b>]
3D 360° View
  • VGA/HDMI Dual !
  • 9-24VDC !
  • 2x MiniPCIe !
  • 2x COM !

Limited offer. As long as stock lasts !

Excellent as a router. 2x Intel WG82574L Gigabit LAN connections, high NAT performance thanks to Intel 1.86Ghz Dual-Core Atom CPU, 3G / 4G / LTE / 5G modem or WLAN upgradeable via 2x mini-PCIe slot. 2x COM port. Fanless, small, energy efficient, strong!

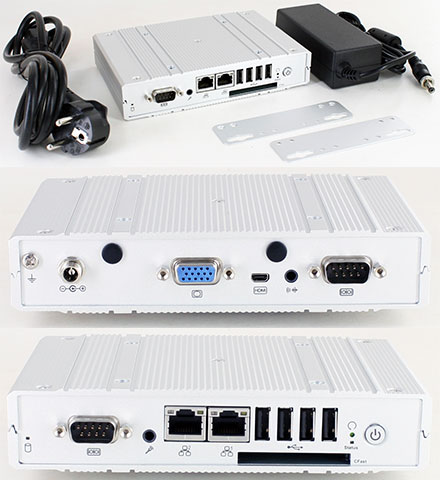

Scope of supply : DFI EC800-CD2041 (2GB RAM/16GB SSD), 12V 60W AC/DC power adapter with power cord, 2x metal mounting adapter



Share

CPU Intel® AtomTM D2550, 1.86GHz, 2x 512K L2, 10W TDP, dual-core
Chipset Intel® NM10 Express Chipset
RAM 2GB DDR3 onboard
Graphics Intel® GMA 3650
• 1 VGA port supports display resolution up to 1920x1200
• 1 micro HDMI port supports display resolution up to 1920x1080
• Smooth Video Playback - Supports hardware decoders (H.264, VC-1, MPEG-4) with Full HD 1080p video playback capability
Storage • 1 CFast socket
• 1 mSATA module via a Mini PCIe slot (16GB Module included)
Ethernet 2x Intel® WG82574L Gigabit Ethernet controllers (DUAL LAN)
Audio • Realtek® ALC886 7.1-channel High Defintion Audio
• 1 line-out and 1 mic-in
COM • 2 DB-9 ports (RS232/422/485)
• Supports RS485 auto direction control
Expansion • 3 Mini PCIe slots - 2 slots for communication : One slot supports PCIe x1, USB, and LPC signals for Wi-Fi module or LPC module : One slot supports PCIe x1, USB, and 3G signals for 3G or GPRS module - 1 slot for storage : Supports mSATA module
• 1 SIM card socket
• 1 CFast
Front I/O • 1 DB-9 RS232/422/485 COM
• 1 mic-in• 2 LAN• 4 USB 2.0 (Type A)
• 1 CFast socket
• 1 status LED
• 1 hdd LED
• 1 reset button
• 1 power button with LED
Power 9~24V DC power input voltage
Environment • Temperature - Operating: 0oC ~ 60oC - Storage: -40oC ~ 80oC
• Humidity - Operating: 10% to 85% non-condensing - Storage: 10% to 90% non-condensing
Construction Aluminium
Mounting Wall/VESA/DIN Rail mount
Dimensions 161mm x 32mm x 108.2mm (W x H x D)
Weight 700g
OS Support • Windows XP, WES 2009, POSReady 2009
• Windows 7 (32-bit), WES 7 (32-bit)
• Linux
Other features Watchdog Timer function
Certification • CE
• FCC Class A
• RoHS
• UL
• CCC
• KC
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Manual [EN] Download
