CTFHD400 - HDMI 7" TFT - Touchscreen USB - Video - Autodimmer - Audio (500 nits) [LED]

CTFHD400 - HDMI 7" TFT - Touchscreen USB - Video - Autodimmer - Audio <b>(500 nits) [LED]</b>
3D 360° View
  • High brightness !
  • Audio speakers !
  • Rear CAM feature !
  • Auto-PowerOn !

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

The new CTFHD-400 TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant HDMI-displ
[more]

Share

249.00 EUR
incl. 19% VAT, plus shipping
In Stock (3 pcs)

Add to cart
Compare

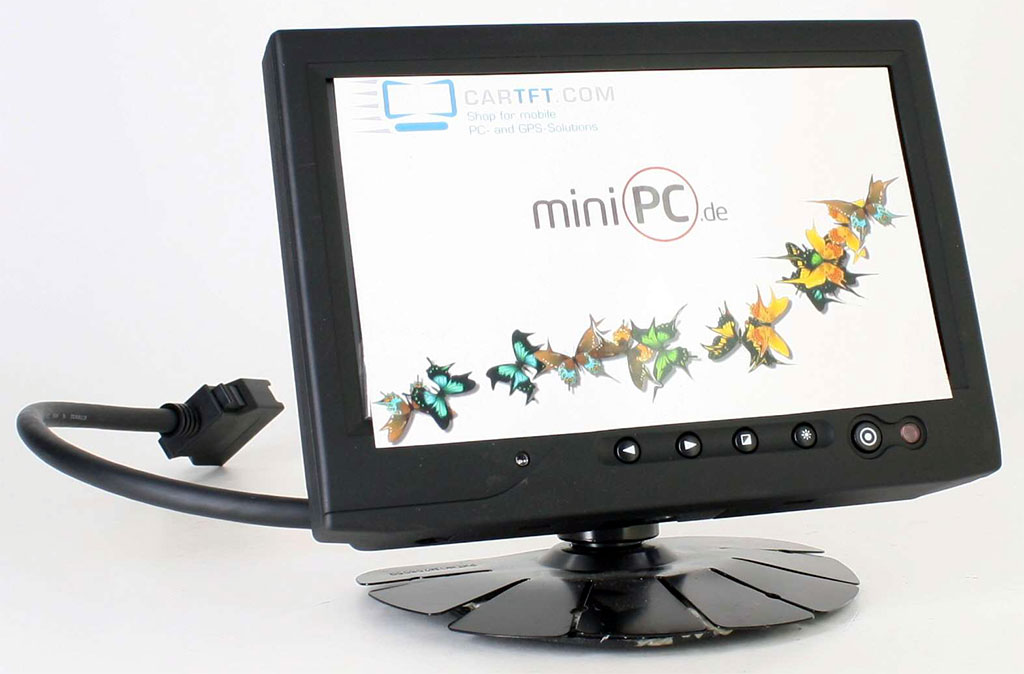

Front

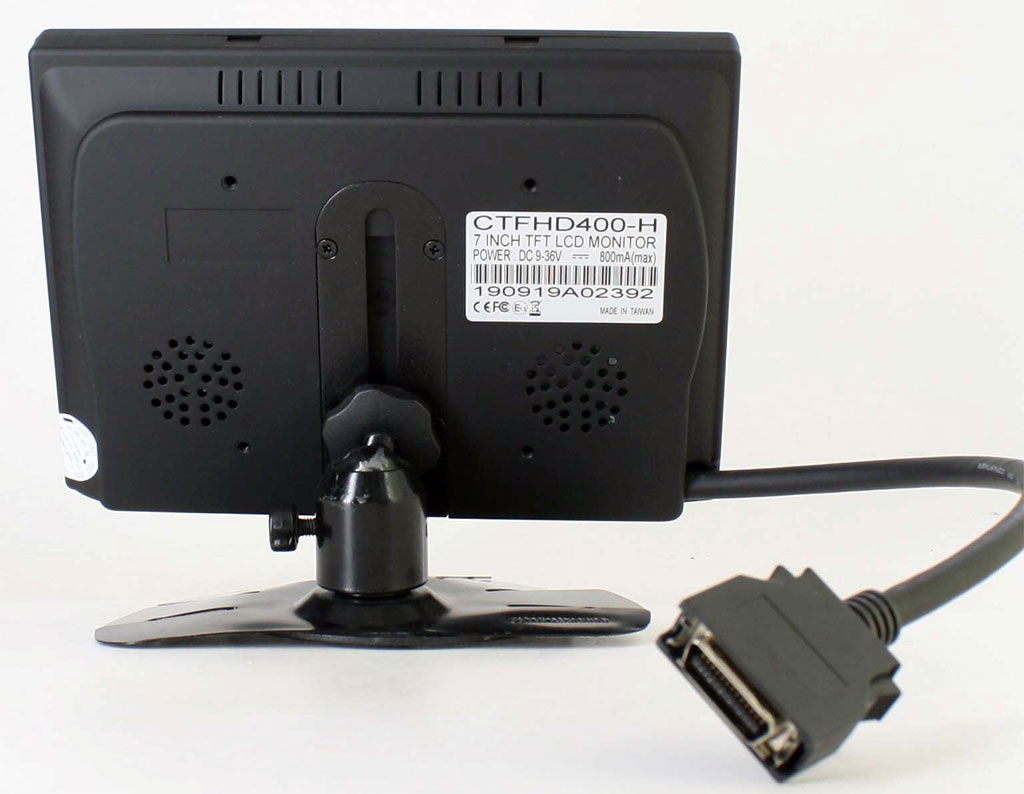

Rear
Side
LCD Size 7"
Aspect Ratio 16:9
VGA resolutions 640x480-1920x1080
Native resolution 1024x600
Dot resolution 3072x600
Brightness 500
VGA Input HDMI
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 9W
Case size 178 x 128 x 28 mm
Visible area 154 x 87 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
yes Headrest mount
yes TS pencil
no Earphone
yes Adjustable video aspect
yes Mirrorable video
yes Reverse camera input

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

The new CTFHD-400 TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant HDMI-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the dimmer button in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTFHD-400 can be used with any PC/MAC with HDMI- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..


Spezifications
Screen size 7" digital
Touchscreen Resistive (also available without Touchscreen or with capacitive Multi-Touschreen)
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 3072x600= 1,843,200 dots
Physical Resolution 1024x600
Supported Resolutions 640x480-1920x1200 (also eg. 1366x768)
Color configuration RGB stripe
Power input DC 12/24V
Power consumption max. 8W
Video system 3x Video inputs (PAL/NTSC)
1x HDMI input
Dimensions Display Case : 178x128x28 mm
Display : 154 x 93 mm
Video input signal 1.0Vp-p, composite video
Brightness 500 cd/m²
Contrast 800:1
Vibration IEC68-2-6
Operating Temperature -20° bis 70°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Auto Power On/Off
Auto-Dimmer
Earphone-Output (rear side)
Automatic switching to rear camera (by signal detection on AV3)
What is included ? - 7" HDMI Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket
- Touchscreen pencil
- HDMI/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
