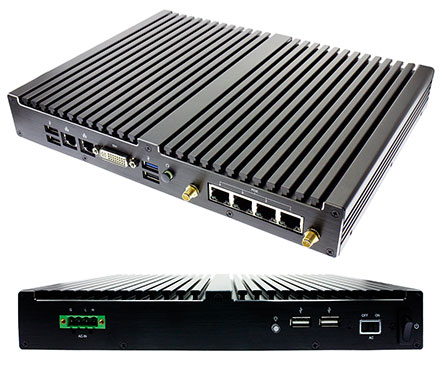

Jetway JBC512F532W-2930-B (Intel Bay Trail-M)

Jetway JBC512F532W-2930-B (Intel Bay Trail-M)

  • INTEL® Bay Trail-M 2930 SoC Processor
  • Single Channel DDR3L 1333MHz SDRAM up to 4GB
  • Support CPU Smart FAN
  • Giga LAN Port * 2
  • Support 100M LAN Port * 4 (DC52.5V-1.94A-102W)
  • Support Watch dog Technology
  • Support AC 90~240V input
  • Applications：Industrial Control System、
    Networking Server System、Security Industry


Share

498.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Product Dimension 264 (W) * 199.4 (D) * 38 (H) mm
Product Model JBC512F532(W)-2930-B
MB Model & Size NF532P-2930 / 3.5” SBC
BIOS AMI UEFI
CPU INTEL® Bay Trail-M 2930 SoC Processor
Memory Single Channel DDR3L 1333MHz SDRAM up to 4GB
Storage Space 2.5” SATA Device * 1
Colors Black
Front I/O Port 4 PIN AC Input * 1 AC ON-OFF * 1 Power LED * 1 Power SW * 1 USB 2.0 * 2
Rear I/O Port USB3.0 * 1 , USB2.0 * 3 DVI-I * 1 Giga LAN Port * 2 Audio * 1 (Line out) WiFi Port * 2 (JBC512F532W-2930-B only)
POE Port 100M LAN Port * 4 (DC52.5V-1.94A-102W) Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at IEEE802.3x Flow control Provides 4 PoE injector, per port DC52.5V-0.48A-25W For Switch : IP178G For PoE : MAX5980
Power Source 150W AC to DC OP Power inside AC 90~240V input
Accessory AC Cable * 1 4 Pin Terminal block con * 1 User Manual * 1 CD * 1 Screw Package * 1
­­Packing Net Weight：3.6KG Gross Weight：4.5KG Color Box Dimension：406 (W) x 148 (D) x 359 (H) mm
­­Temperature Operating within 0~50 centigrade Storage within -10-70 centigrade
Certification EMC : CE , FCC Safety : RoHS , ErP
­­Applications Industrial Control System Networking Server System Security Industry
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
